HSW 1186 cable fuse box
Pole internal diameter: from ∅ 65 mmFuses: 2 x D01 (E14) up to 16 A
Measurements: 160 x 50 x 54 mm
Connection: 5 x 16 mm²
Product according to DIN VDE 0636 and VDE 0606
HSW 1194 cable fuse box
Pole internal diameter: from ∅ 70 mmFuses: 1 x D01 (E14) up to 16 A
Measurements: 160 x 59 x 57 mm
Connection: 2 cables 5 x 2,5 mm² up to 5 x 6 mm²
VDE tested according to DIN VDE 0660-505 and DIN 43628
HSW 1195 cable fuse box
Pole internal diameter: from ∅ 89 mmFuses: 2 x D01 (E14) up to 16 A
Measurements: 235 x 79 x 66 mm
Connection: 3 cables 5 x 6 mm² up to 5 x 10 mm² or 2 cables up to 5 x 16 mm²
VDE tested according to DIN VDE 0660-505 and DIN 43628
HSW 1197 cable fuse box
Pole internal diameter: from ∅ 68 mmFuses: G-fuse insert up to 6,3 A
Measurements: 160 x 59 x 43 mm
Connection: 2 cables up to 5 x 6 mm²
Product according to DIN VDE 0660-505, DIN 43628 and DIN EN 60998 (VDE 0613)
HSW 1809 cable fuse box
Pole internal diameter: from ∅ 100 mmFuses: 1 x NEOZED fuse base D01 or D02
Measurements: 180 x 82 x 83 mm
Connection: 1 or 2 cables up to 5 x 2,5 mm² or 4 x single cores up to 2,5 mm²
Product according to DIN VDE 0660-505 and DIN 43628

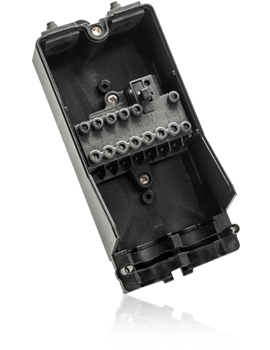

HSW 1810 cable fuse box
Pole internal diameter: from ∅ 95 mmFuses: G-fuse insert up to 6,3 A
Measurements: 180 x 82 x 66 mm mm
Connection: 2 Kabel up to 6 mm²
HSW 1810 cable fuse box in 7-pole version for easy and convenient connection of your DALI installation.
HSW 1920 cable fuse box
Pole internal diameter: from ∅ 70 mmFuses: 2 x D01 (E14) up to 16 A
Measurements: 245 x 66 x 55 mm
Connection: 3 cables 5 x 2,5 mm² up to 5 x 10 mm²
VDE tested according to DIN VDE 0660-505 and DIN 43628
HSW 1921 cable fuse box
Pole internal diameter: from ∅ 70 mmFuses: 2 x D01 (E14) up to 16 A
Measurements: 264 x 66 x 57 mm
Connection: 3 cables 5 x 2,5 mm² up to 5 x 10 mm²
Product according to DIN VDE 0660-505 and DIN 43628
HSW 1998 cable fuse box
Pole internal diameter: from ∅ 70 mmFuses: G-fuse insert up to 6,3 A
Measurements: 245 x 66 x 55 mm
Connection: 2 Kabel 5 x 2,5 mm² bis 5 x 6 mm²
Including Surge protection Typ 2 + 3 combined for supply voltage and data lines
Product according to DIN VDE 0660-505, DIN 43628 and DIN EN 60998 (VDE 0613)
Cable junction boxes
You need something more individual?
HSW Stadtfeld has a varied range of cable junction boxes. Should you still not find the right solution for your requirements, we can adapt our cable junction boxes individually to your wishes.
We have the possibility to equip our models with different seals, screw connections, earth conductors and fuse inserts. Our variety of housings allows us to realize numerous installations, be it residual current circuit breakers, surge protection modules, light controls or control lines. We would be pleased to advise you and develop an individual solution for you.
Just contact us!
